VI Model
Options
- Adjustable aluminum shutters
- “Soft” quickly removable bug screens
- Discharge or personnel guards
- Access ladders
- Warm air recirculation system
- Low Noise fan
VI Model
The Induced Draft Type VI Compliments AXH air-coolers Line of Vertical Discharge Coolers
AXH air-coolers: VI Model
-
Advantage Summary
- Offers combined engine, compressor, and multiple-stage gas cooling in a single unit
- High vertical discharge air velocity results in the cooler being less affected by wind direction or adjacent equipment
- Greater accessibility to sections
- Superior air-flow control improves process operation
-
Vertical Discharge Design
The induce draft Type VI design offers combined engine and compressor cooling with multiple stage gas services in a single structure. It minimizes hot air recirculation due to its vertical discharge design and is virtually unaffected by variations in wind direction or the location of adjacent equipment in applications requiring induced draft cooling.
-
Section Accessibility
The Type VI’s design provides greater section accessibility in applications requiring section replacement or change out. All sections are equipped with integral core guards for maximum protection of the exposed sections.
-
Superior Temperature Control and Inspection & Maintenance
- Superior Temperature Control: Adjustable aluminum shutters are an optional feature on all Type VI coolers and are located on the air inlet side of the sections for improved control of fluid outlet temperatures. Manual or automated shutters with remote linkage provide superior air-flow control and improved operating efficiency by allowing independent louver adjustment over separate services.
- Inspection and Maintenance: Fan and fan bearings are provided with removable access doors for easy inspection and maintenance, while the rear drive bearing is located outside in cooler ambient air for extended operating life. All bearings are serviced by means of remote lubrication fittings.
-
Drive Options

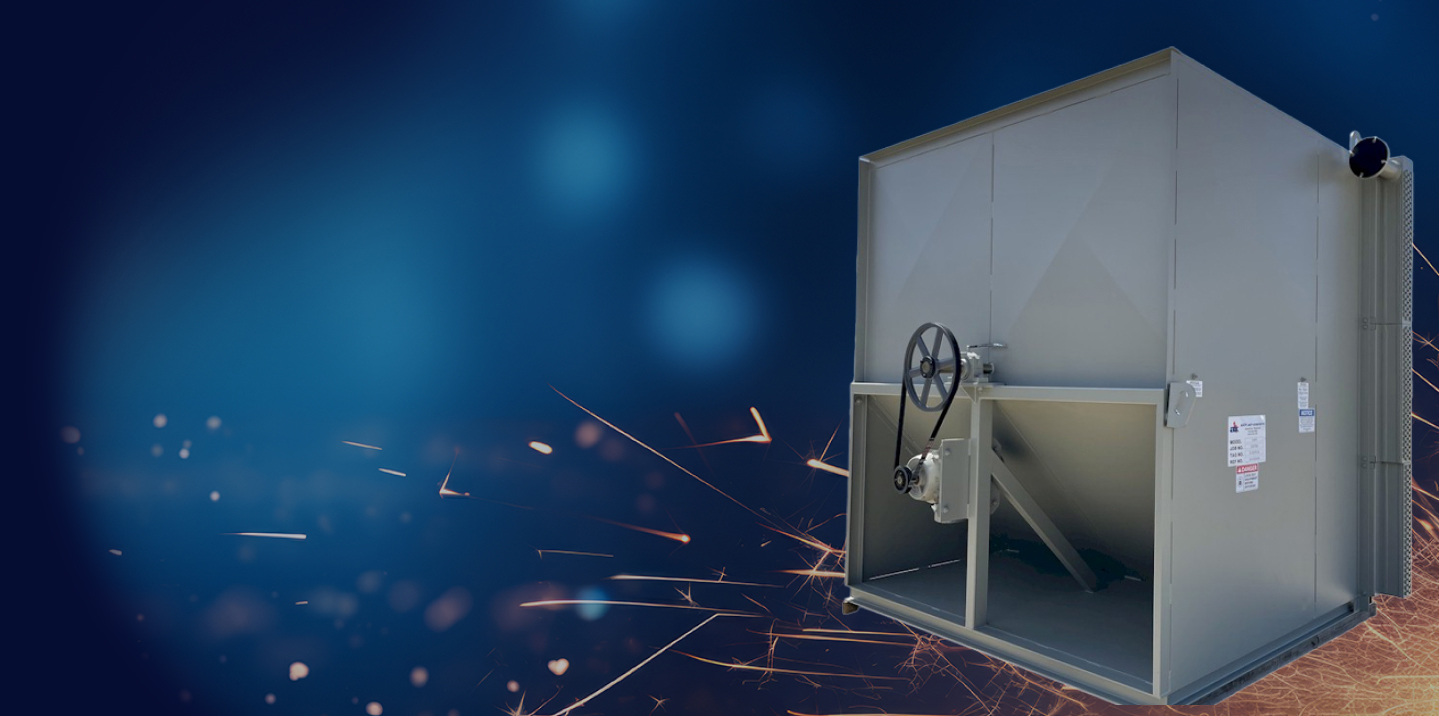

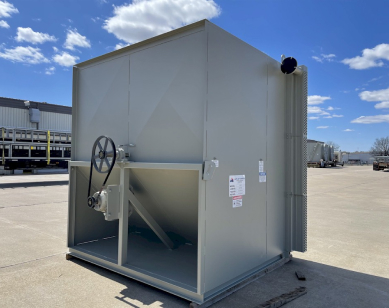

Normally V-belt driven from the engine or compressor the VI can be provided with an internal electric motor or hydraulic drive.
- Electric Motor Drive
When to choose the VI MODEL
Versatile Vertical heat exchanger for Reliable Industrial Cooling Solutions
The VI models at AXH Air-Coolers are engineered to deliver superior cooling performance across a wide range of industrial applications. Its vertical, induced draft design makes it particularly well-suited for applications where space is at a premium, providing efficient heat dissipation in compact setups. Whether you’re dealing with high ambient temperatures or require a solution that can handle fluctuating workloads, our VI air coolers are designed to adapt and perform reliably under any conditions. With a focus on versatility, these heat exchangers are perfect for industries that demand consistent cooling efficiency and durability. Our VI model air coolers incorporate advanced technology to ensure optimal heat exchange, reduced energy consumption, and minimal maintenance, making them an ideal choice for companies looking to maximize productivity while minimizing operational costs. Trust AXH’s VI heat exchangers to provide the cooling power your industrial operations need, no matter the challenge.
