SECTIONS / TUBE BUNDLES

At AXH air-coolers, we pride ourselves on delivering replacement sections and tube bundles to fit any manufacturer’s existing air-cooled heat exchanger. Our team of experts from engineering and drafting, all the way to manufacturing are here to provide critical replacement components design specifically for your application. A robust in-house finning operation and large stock of bare tubes allows AXH to deliver high quality finned tubes with exceptional lead times.

SECTIONS / TUBE BUNDLES

High efficiency fin design

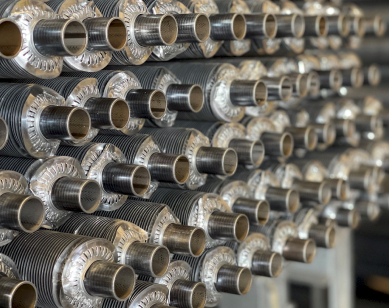

  • The High Performance Type Fin has been proven in more than 100,000 applications worldwide over a period of more than 50 years
  • Inherent advantages include a reduction in overall size and heat transfer surface requirements for a specific cooling duty. Conversely, a similar sized cooling section using the high performance fin will require either less air flow thereby reducing power costs or will provide increased cooling capacity. This is an important factor when replacing older tube bundle sections.
  • The High Performance Fin design offers up to 25% greater heat transfer than the conventional plain fin design. A spiral, L-foot or shoulder-type fin with radial openings achieves superiority over the plain smooth fin by substantially reducing required heat transfer surface while incorporating the strength and non-clogging characteristics of a smooth fin.

Why and How

When any fluid passes over a surface, a stagnant fluid layer or film builds up adjacent to the surface which it is in contact. The greater the contact area and/or longer contact length the greater the stagnant layer becomes. In similar fashion, air passing over a plain or smooth fin surface forms a stagnant air film that reduces thermal conduction and lowers the rate of heat transfer from fin to the atmosphere. The High Performance Fin’s interrupted surface through its radial openings, prevents this stagnant film of air from reaching its maximum thickness thus increasing the outside film transfer coefficient. Most importantly, it does not increase the turbulence of the air passing over the fins and the result is an increase in overall heat transfer rate without an increase in static pressure or fan horsepower.

HEADERS

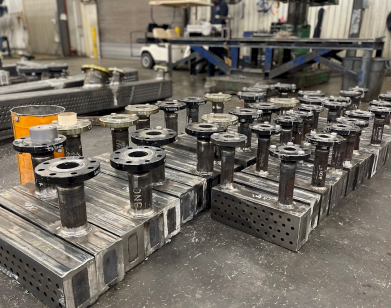

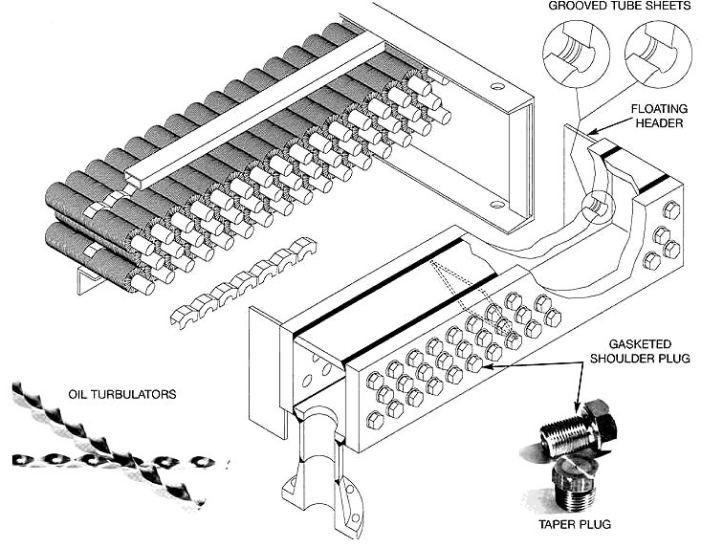

All code headers are constructed of SA516-70N steel utilizing a box type design and incorporating individual hex-head access plugs for easy tube maintenance or replacement in accordance with ASME code. Taper pipe plugs or shoulder access plugs which are spot faced with soft iron gaskets are standard. All tube sheets are built with single or double grooves.

Specialty Designs

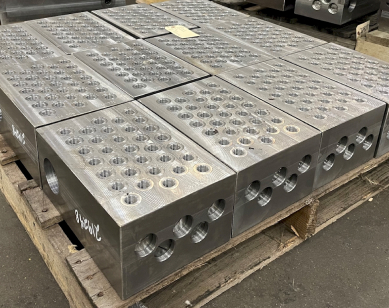

AXH air-coolers also offers optional specialized designs including a patented header as well as machined slab headers in which all long seam and a substantial amount of welding is eliminated

Energy Efficiency

Each section is designed to optimize energy usage, ensuring that the cooling process is both environmentally friendly and cost-effective for users.

SECTIONS / TUBE BUNDLES

SECTIONS

  • All sections incorporate a floating header design which allows at least one header to move independently with the expansion and the contraction of the tubes while maintaining proper alignment.

High Performance Fin design

High-Quality Sections and Tube Bundles for Optimal Heat Exchange

AXH air-coolers offers high-quality Sections and Tube Bundles designed to deliver exceptional heat exchange performance across various industrial applications. Engineered with precision, our Sections and Tube Bundles are crafted to ensure efficient thermal transfer, maximizing the cooling potential of your air-cooler systems. These components are built to withstand the rigors of demanding environments, providing durability and long-term reliability. Whether you need to replace existing parts or upgrade your cooling system, our Sections and Tube Bundles are tailored to meet the specific requirements of your operations, ensuring seamless integration and optimal performance. With AXH air-coolers, you can trust that your cooling systems will maintain peak efficiency, minimizing energy consumption and reducing operational costs while providing the cooling capacity your industry demands.
